P4VXASD2+ DDR/SDRAM 전환하기

P4VXASD2+  메인보드에서 DDR ↔ SDRAM 전환하여 사용하려면 점퍼를 변경시켜야 합니다.

JUMPER SETTINGS AND HEADER PIN-OUT(s):

DRAM VCC JP1	OFF 2.5 VOLT (DDR)	ON 3 VOLT (SDRAM)
DDR / SDR DRAM Type Selector J2A/B/C/D, J3A/B/C/D	DDR1, DDR2: Short all J2A/B/C/D and J3A/B/C/D	DIMM1,DIMM2: Open all J2A/B/C/D and J3A/B/C/D

위 표의

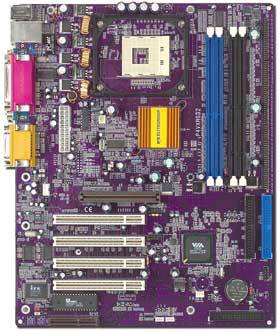

JP1은 청색의 DDR램 소�과 검정색의 SDRAM소� 사이의 아래쪽에 있습니다.



J2A/B/C/D, J3A/B/C/D 이 점퍼는

검정색의 SDRAM소� 오른쪽에 있습니다.(좀 많죠~)





Socket 478 board that supports Intel� Pentium� 4 processor up to 533MHz FSB

Integrated with the most advanced technologies:

• LAN/modem wake up

• Magic setting

• Hardware monitoring

PROCESSORS

• Socket 478 supports the Intel� Pentium� 4 processor

  CHIPSET

• VIA� P4X333A & VT8233A

  • P4X333 V-link host system controller and VT8235 V-link client to PCI/LPC bridge
  • Peak Bandwidth 266MB/S 8-bit V-link Host Controller
• LPC I/O - IT8705F
• System hardware monitor: Built-in IT8705F
• LAN: 10/100Mbps faster Ethernet (optional)
• AC97 Audio Codec: Compliant with AC97 2.1 specification

  SYSTEM BIOS

• AMI 2Mb Flash EEPROM
  • Supports Plug and Play 1.0A, AMP 1.2, Multi Boot, DMI
  • Support for ACPI revision 1.0 specification

  MEMORY
• 2 DDR DIMM sockets and 2 DIMM sockets support (can not be used simultaneously)
  • Two 184-pin 2.5V DDR SDRAM (DDR266/DDR200) or
  • Two 168-pin 3.3V SDRAM (PC133/PC100)
  • Maximum: 2GB DDR or SDRAM (Buffered) / 1GB DDR or SDRAM (Unbuffered)

  I/O INTERFACE

• PS/2 keyboard and PS/2 mouse connectors
• Dual USB ports and an optional LAN connector
• 1 - EPP/ECP mode parallel port
• 2 - 16550 high-speed serial I/O ports
• Audio ports (Line-in, Line-out, Mic-in, CD-in and game port)
• Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA Mode 2, Ultra DMA 66/100)
• Supports 360K~2.88M Byte, 3 mode FDDs or LS120
• ATX power supply connectors
• Ports, headers and others:
  • IrDA header (STR)
  • Front panel Mic./Line-out header
  • 4 extra USB ports (USB1 and USB2)
  • HDD LED, Reset switch, Power switch headers
  • CPU and case fan headers
  • LAN Card Wake Up/Internal Modem Ring Wake Up headers

  RTC & BATTERY

• VT8235 included 256 bytes of CMOS
• With CMOS hardware clear jumper

  EXPANSION SLOTS

• 4 PCI slots, 1 AGP slot, 1 CNR slot

  FORM FACTOR

• ATX (305mm*244mm), 4 Layers

CPU SUPPORT

Please use the search engine to find a product model or, choose a Processor to show the supported products. This table shows the CPU types that we tested in our label, and only applies to recent shipment of ECS Products. Asterisk (*) means under ECS validation, this board is ready to support those CPU we marked by asterisk.

CPU Support list by Model Model: P4VXASD2+ Chipset: VIA� P4X333 & VT8235 PCB Version : V5.0   BIOS : 20815

Processor Processor info. (Cache, System Bus*, Pkg) Status Intel Pentium 4 (Northwood) (HT) 3.06 GHz (512K,533MHz,Socket 478) YES Intel Pentium 4 (Northwood) 1.8A GHz (512K,400MHz,Socket 478) YES Intel Pentium 4 (Northwood) 2.0A GHz (512K,400MHz,Socket 478) YES Intel Pentium 4 (Northwood) 2.4B GHz (512K,533MHz,Socket 478) YES Intel Pentium 4 (Northwood) 2.5 GHz (512K,400MHz,Socket 478) YES Intel Pentium 4 (Northwood) 2.26 GHz (512K,533MHz,Socket 478) YES Intel Pentium 4 (Northwood) 2.53 GHz (512K,533MHz,Socket 478) YES Intel Pentium 4 (Northwood) 2.8 GHz (512K,533MHz,Socket 478) YES Intel Pentium 4 (Northwood) 2.6 GHz (512K,400MHz,Socket 478) YES Intel Pentium 4 (Northwood) 2.4 GHz (512K,400MHz,Socket 478) YES Intel Pentium 4 (Northwood) 2.2 GHz (512K,400MHz,Socket 478) YES Intel Pentium 4 (Northwood) 1.6A GHz (256K,400MHz,Socket 478) YES Intel Pentium 4 (Northwood) 2.66 GHz (512K,533MHz,Socket 478) YES Intel Pentium 4 (Willamette) 1.7 GHz (256K,400MHz,Socket 478) YES Intel Pentium 4 (Willamette) 2.0 GHz (256K,400MHz,Socket 478) YES Intel Pentium 4 (Willamette) 1.6 GHz (256K,400MHz,Socket 478) YES Intel Pentium 4 (Willamette) 1.8 GHz (256K,400MHz,Socket 478) YES Intel Pentium 4 (Willamette) 1.9 GHz (256K,400MHz,Socket 478) YES Intel Celeron 1.7 GHz (128K,400MHz,Socket 478) YES Intel Celeron 1.8 GHz (128K,400MHz,Socket 478) YES Intel Celeron 2.8 GHz (128K,400MHz,Socket 478) YES Intel Celeron 2.2 GHz (128K,400MHz,Socket 478) YES Intel Celeron 2.0 GHz (128K,400MHz,Socket 478) YES Intel Celeron 2.1 GHz (128K,400MHz,Socket 478) YES Intel Celeron 2.3 GHz (128K,400MHz,Socket 478) YES Intel Celeron 2.4 GHz (128K,400MHz,Socket 478) YES Intel Celeron 2.5 GHz (128K,400MHz,Socket 478) YES Intel Celeron 2.6 GHz (128K,400MHz,Socket 478) YES Intel Celeron 2.7 GHz (128K,400MHz,Socket 478) YES
